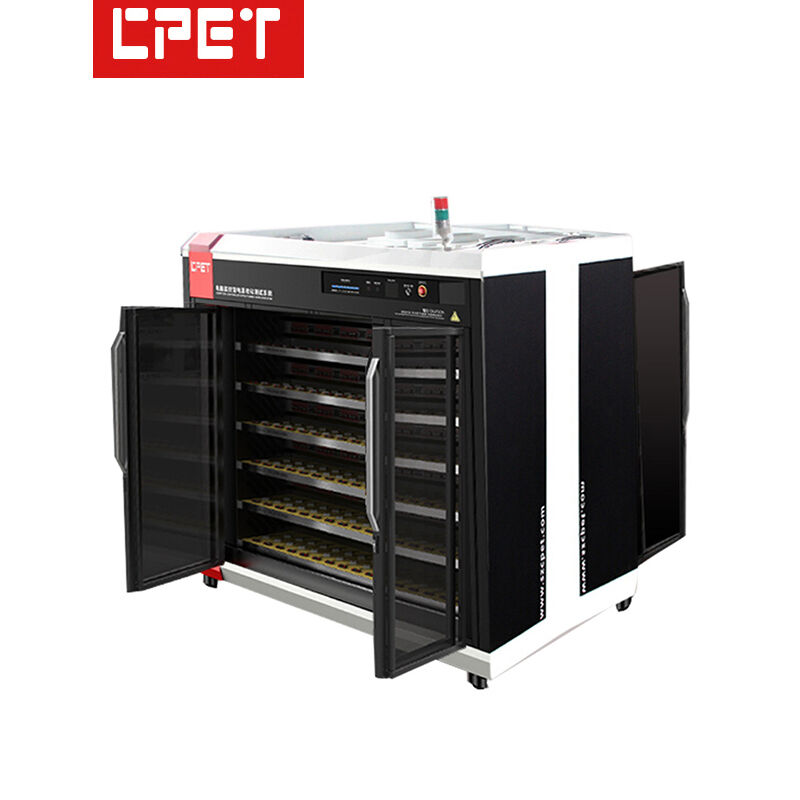

Electronic Cigarette / Notebook Lithium Battery Charging And Discharging burning-in Test Equipment

جزئیات محصول

محل منبع: چین

نام تجاری: CPET

گواهی: CE,ROHS

شماره مدل: CP-DC3001

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 1

قیمت: ¥ 42800 yuan

جزئیات بسته بندی: بسته بندی کیس چوبی

زمان تحویل: 35 روز کاری

شرایط پرداخت: T/T

قابلیت ارائه: 30 ست در ماه

بهترین قیمت رو بدست بیار
جزئیات محصول
برجسته کردن:
رنگ:
مشکی
دوره گارانتی:
12 ماه
شماره مورد:
CPMT-DC3001
هدف:
تست پیری باتری
رنگ:
مشکی
دوره گارانتی:
12 ماه
شماره مورد:
CPMT-DC3001
هدف:
تست پیری باتری
توضیحات محصول
Electronic Cigarette / Notebook Lithium Battery Charging And Discharging burning-in Test Equipment
Scope of Application
Electronic Cigarette / Notebook Lithium Battery Charging And Discharging burning-in Test Equipment 0
This specialized equipment is engineered for comprehensive lithium battery module burn-in testing systems, providing reliable performance validation for electric vehicle applications.
Performance Parameters
Electronic Cigarette / Notebook Lithium Battery Charging And Discharging burning-in Test Equipment 1
Parameter Specification Requirements
Burn-in Cabinet Size L2600 * W1320 * H1980 (mm)
Distribution Cabinet Size L600 * W1320 * H1980 (mm)
Electrical Design
  • Incoming line: three-phase 380V / 68A
  • Power distribution: AC output adopts three-phase five-wire system, single-phase voltage supplies power to the power module, with three-phase equalization in layers
  • Control: power output of each layer can be monitored and controlled
Cabinet Layout & Design
  • Overall layout: aging cabinet contains product area and isolation module area with complete isolation
  • Product area: 6 layers, 3 slots per layer, 1 PSU per layer, 6 isolation modules
  • Connection method: hard connection with fixed external interfaces including power supply output, load input, 485 signal, and address signal
  • Heat capacity design: 13.5kW (2.25kW * 6)
Monitoring System
  • PC: supports multiple 485 serial communication, Windows 7 system, 500GB hard disk
  • Includes 22-inch monitor, mouse, keyboard, wireless barcode gun
  • General monitoring: 1-way 485 communication with PC, 4-way downstream 485 communication with monitoring subsystems
  • PSU monitoring: monitors each power supply module through 485 serial communication
  • Load isolation module monitoring: monitors each isolation module through 485 communication
  • Power environment monitoring: individual control of each layer power supply and fan switches
Software Capabilities
  • 485 receives commands from host computer and monitors power modules through CAN
  • Implements output voltage and current limit setting commands
  • Manages voltage, current, temperature, smoke status information queries
  • Comprehensive management of power module monitoring, load isolation, cabinet environment, and product testing
  • Real-time abnormality handling, parameter adjustment, control restart/reset, and alarm recording
Safety & Protection Features
  • Cabinet smoke and over temperature protection systems
  • Heat dissipation: single load cabinet product area has 6KW heat dissipation capacity
  • Leakage protection: 30mA leakage protection circuit breaker installed on AC side
  • Comprehensive fire prevention and emergency protection functions
All specifications and safety features are designed to meet industry standards and ensure reliable, safe operation during lithium battery module burn-in testing procedures.
